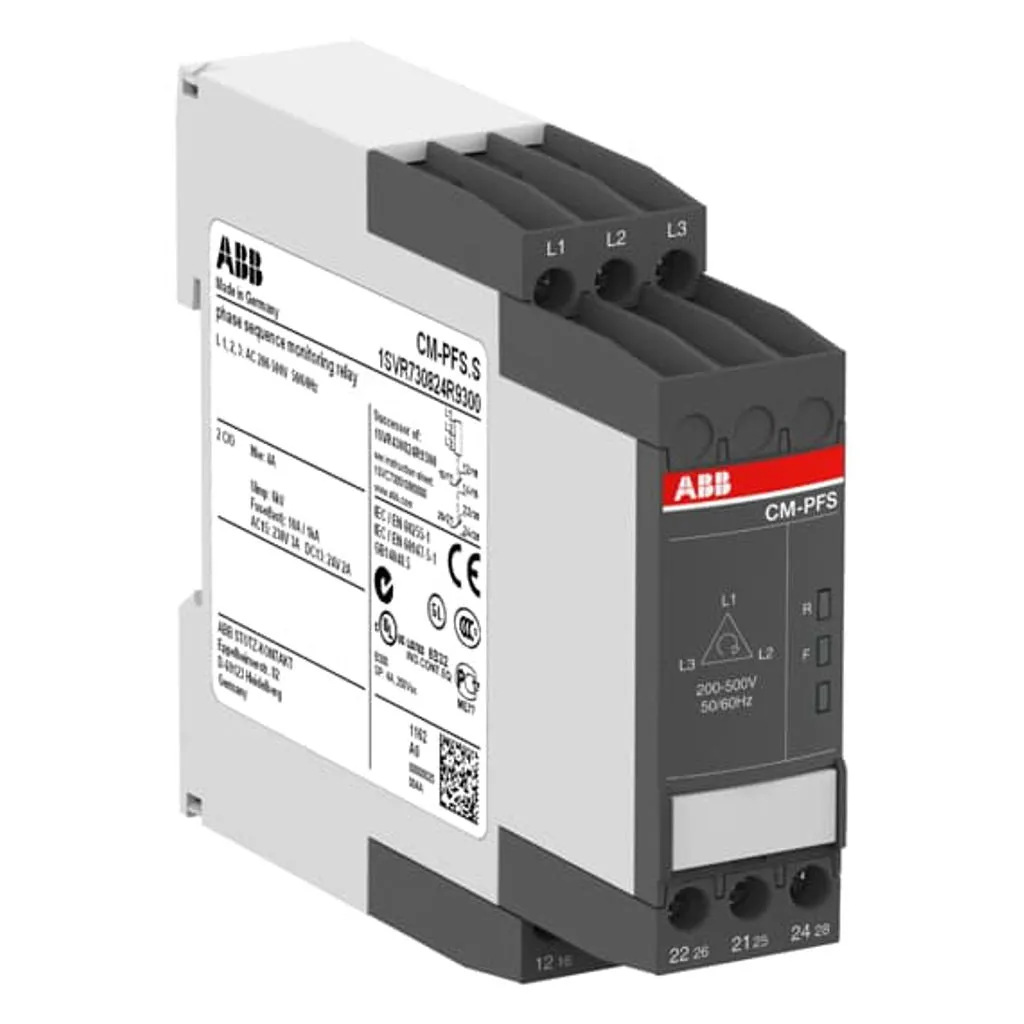

Brand

ABB

Product Type

Monitoring Relay

Product Code

1SVR730824R9300

Model

CM-PFS.S

Technical

Function

Phase failure detection
Phase sequence monitoring

Standards

CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508

Measuring Range

(L-L) 200 ... 500 V AC

Rated Control Supply Voltage (U_s)

(L-L) 200 ... 500 V AC

Rated Frequency (f)

Supply Circuit 50/60 Hz

Output

2 c/o (SPDT) contacts

Time Range

500 ms start-up delay

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I_e)

(230 V) 4 A

Rated Operational Current AC-15 (I_e)

(230 V) 3 A

Rated Operational Current DC-12 (I_e)

(24 V) 4 A

Rated Operational Current DC-13 (I_e)

(24 V) 2 A

Minimum Switching Capacity

24 V
10 mA

Rated Insulation Voltage (U_i)

Input Circuit / Output Circuit 600 V
Output Circuit 1 / Output Circuit 2 300 V

Rated Impulse Withstand Voltage (U_imp)

Input Circuit 6 kV, Output Circuit 4 kV

Degree Of Protection

Housing IP50, Terminals IP20

Pollution Degree

3

Overvoltage Category

III

Mechanical Durability

30000000 cycle

Electrical Durability

AC-12 100000 cycle

Short-Circuit Protective Devices

Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A

Connecting Capacity

Flexible with Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Ferrule 2x 0.5 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²
Flexible 1x 0.5 ... 2.5 mm²
Flexible 2x 0.5 ... 1.5 mm²
Rigid 1x 0.5 ... 4 mm²
Rigid 2x 0.5 ... 2.5 mm²

Wire Stripping Length

8 mm

Tightening Torque

0.6 ... 0.8 N·m

Mounting Position

Any

Mounting On DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Recommended Screw Driver

Pozidriv 1
4.5
0.8 x 4

Environmental

Ambient Air Temperature

Operation -25 ... 60 °C
Storage -40 ... 85 °C

Technical UL/CSA

Maximum Operating Voltage UL/CSA

Output Circuit 300 V AC

Contact Rating UL/CSA
