Product Description

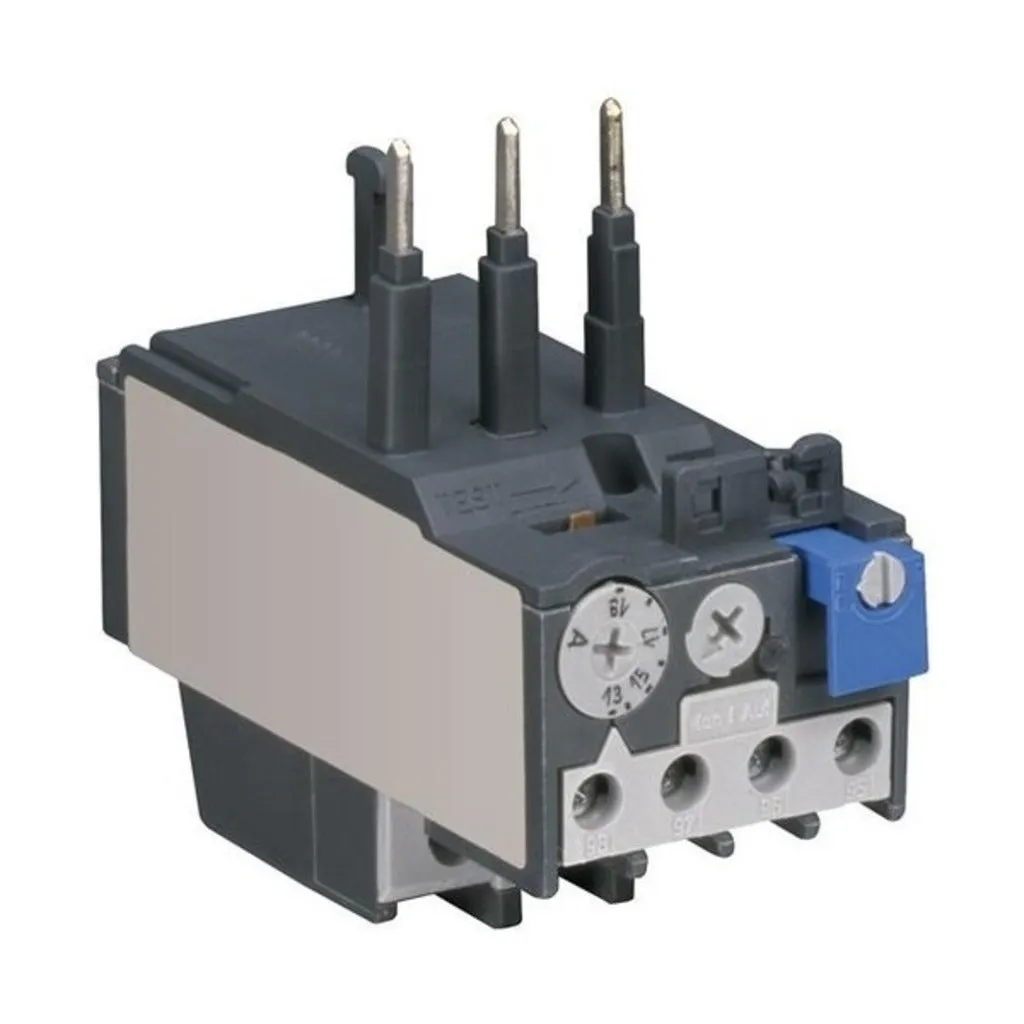

• TA25DU thermal overload relay is an economic electromechanical protection device for the main circuit

• It offers reliable and fast protection for motors in the event of overload or phase failure The device has trip class 10A

• Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication

• The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory

• Product Net Width : 44 mm

• Product Net Height : 80 mm

• Product Net Depth / Length : 94 mm

• Product Net Weight : 0.15 kg

• Rated Insulation Voltage (U_i) : 690 V

• Number of Poles : 3

• Number of Auxiliary Contacts NC : 1

• Number of Auxiliary Contacts NO : 1

• Number of Protected Poles : 3

• Degree of Protection : Housing IP20 , Main Circuit Terminals IP10

• Pollution Degree : 3

• Tightening Torque : Auxiliary Circuit 1 ... 1.3 N·m , Main Circuit 1.5 ... 1.9 N·m

• Wire Stripping Length : Auxiliary Circuit 9 mm , Main Circuit 12 mm

• Mounting Position : Position 1 to 4

• Power Loss : at Rated Operating Conditions per Pole 1.1 ... 2.2 W

• Suitable For : AX09,AX12,AX18,AX25,AX32,AX40

• Standards : IEC/EN 60947-1,IEC/EN 60947-4-1,IEC/EN 60947-5-1,UL 508,CSA 22.2 No. 14
