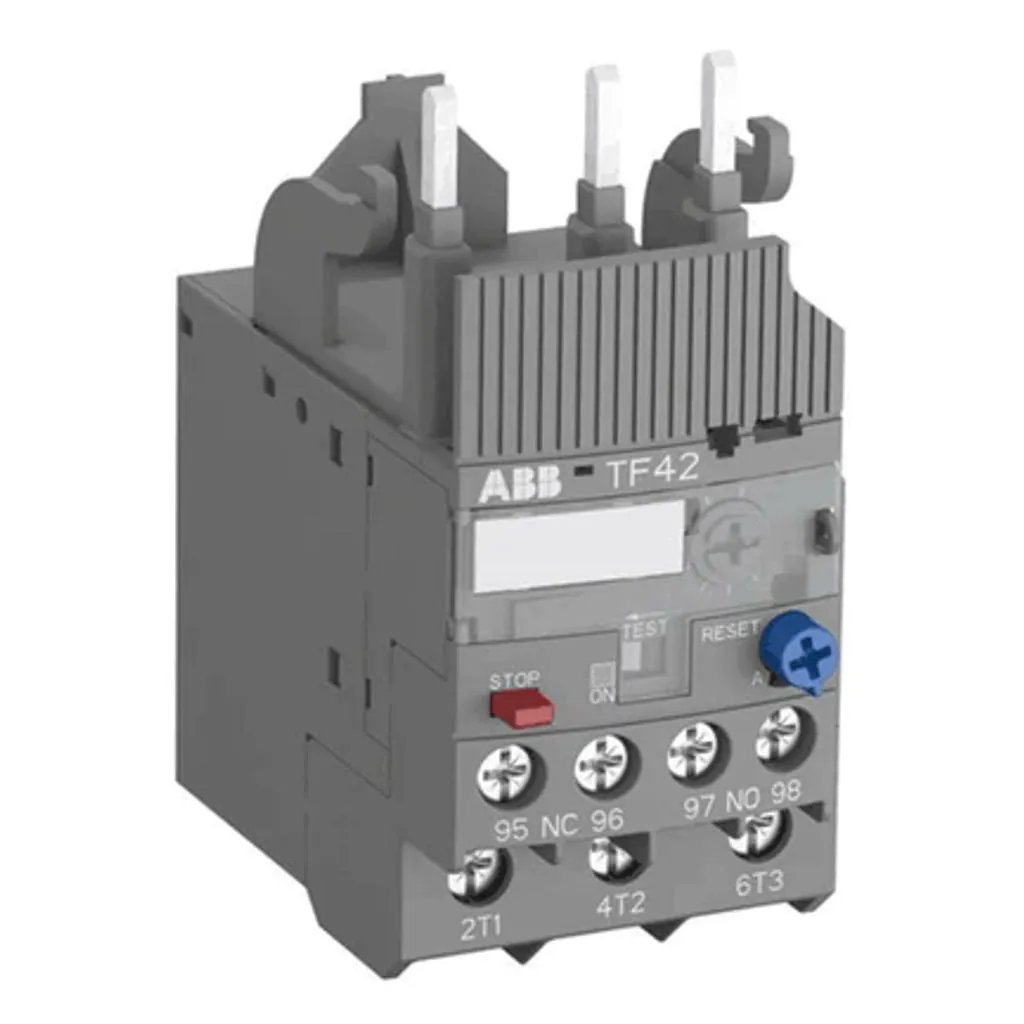

Product Description
-
The TF42 thermal overload relay is an economic electromechanical protection device for the main circuit
-
It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication
-
The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory
-
Rated Operational Voltage : Auxiliary Circuit 600 V AC/DC , Main Circuit 690 V AC
-
Rated Insulation Voltage (Ui) : 690 V
-
Number of Poles : 3
-
Number of Auxiliary Contacts NC : 1
-
Number of Auxiliary Contacts NO : 1
-
Number of Protected Poles : 3
-
Conventional Free-air Thermal Current (Ith) : Auxiliary Circuit NC 6 A , Auxiliary Circuit NO 4 A
-
Degree of Protection : IP20
-
Pollution Degree : 3
-
Mounting Position : Position 1 to 5
-
Product Net Width : 45 mm
-
Product Net Height : 88.3 mm
-
Product Net Depth / Length : 70.5 mm
-
Product Net Weight : 0.13 kg
Product Specification
|
Rated Operational Current (Ie) |
Product id |
Type |
|
0.13 A |
1SAZ721201R1005 |
TF42-0.13 |
|
0.17 A |
1SAZ721201R1008 |
TF42-0.17 |
|
0.23 A |
1SAZ721201R1009 |
TF42-0.23 |
|
0.31 A |
1SAZ721201R1013 |
TF42-0.31 |
|
0.41 A |
1SAZ721201R1014 |
TF42-0.41 |
|
0.55 A |
1SAZ721201R1017 |
TF42-0.55 |
|
0.74 A |
1SAZ721201R1021 |
TF42-0.74 |
|
1.0 A |
1SAZ721201R1023 |
TF42-1.0 |
|
1.3 A |
1SAZ721201R1025 |
TF42-1.3 |
|
1.7 A |
1SAZ721201R1028 |
TF42-1.7 |
|
2.3 A |
1SAZ721201R1031 |
TF42-2.3 |
|
3.1 A |
1SAZ721201R1033 |
TF42-3.1 |
|
4.2 A |
1SAZ721201R1035 |
TF42-4.2 |
|
5.7 A |
1SAZ721201R1038 |
TF42-5.7 |
|
7.6 A |
1SAZ721201R1040 |
TF42-7.6 |
|
2-10 A |
1SAZ721201R1043 |
TF42-10 |
|
13 A |
1SAZ721201R1045 |
TF42-13 |
|
16 A |
ABB Thermal Overload Relay Three-Pole 0.13A-38A TF42$ 86.85 $ 66.81 Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
