Model: P880248MEC

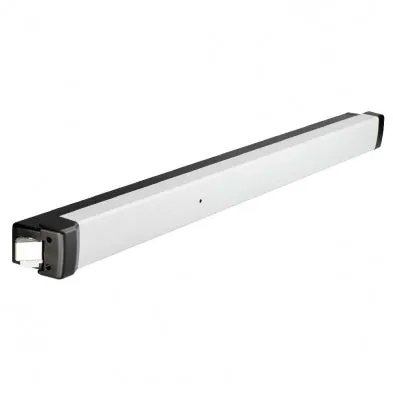

Adams Rite P8800 Series Pullman Rim Exit Devices Dark Bronze Anondized 48in Matching End Caps features include:
Active pushbar and back bar made of extruded aluminum, available in choice of finishes.
Device is non-handed.
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.
Standard width bars can be field cut to the next smallest opening width.
Can be used with trim on 1-3/4" thick doors, up to 2-1/4" door thickness.
When cylinders are required, select rim cylinder length based upon door thickness.
Minimum 2" stile. Fits ultra-narrow, narrow, medium, and wide stile aluminum doors.
Standard cylinder dogging with 3/16” hex key.
Device mounted using standard type ‘F’ self-tapping screws. Rivnuts are provided for the P8700 only.
Horizontally adjustable strike assembly body made of Zamak 5 with hardened steel roller.
Standard strike assembly suitable for centering doors in 4" jamb.
Strike plate adjusts 1/4" horizontally.
