Product Details
＋
Feature

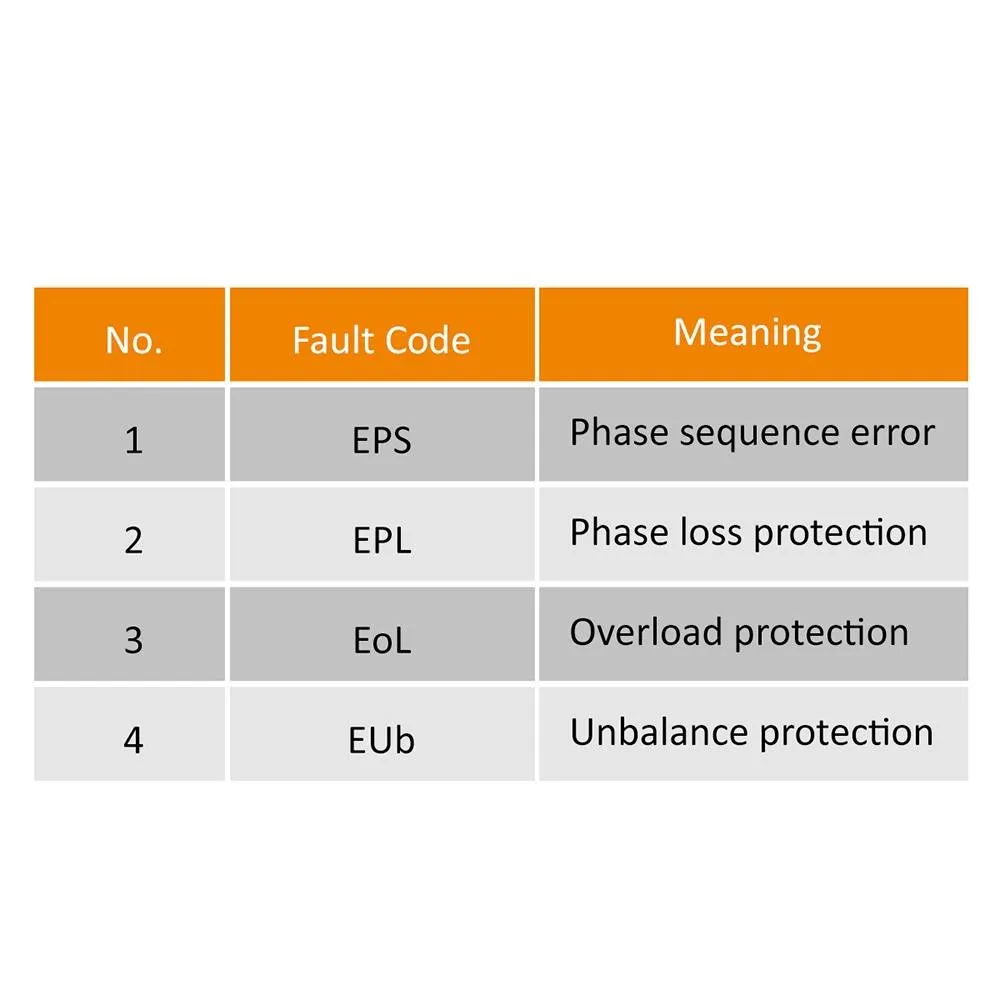

- New phase sequence detection and protection design, phase loss protection, unbalance, overload protection
- Three-phase current detection, over-current protection up to 200A
- Comes with higher measurement accuracy, and it can play a protective role in case of program errors, and the measurement accuracy is up to ±2A (0-30A).
- With RS485 communication function, it can remotely monitor the compressor running status in real-time after networking
- Current measurement range: 2-80A; 30-200A

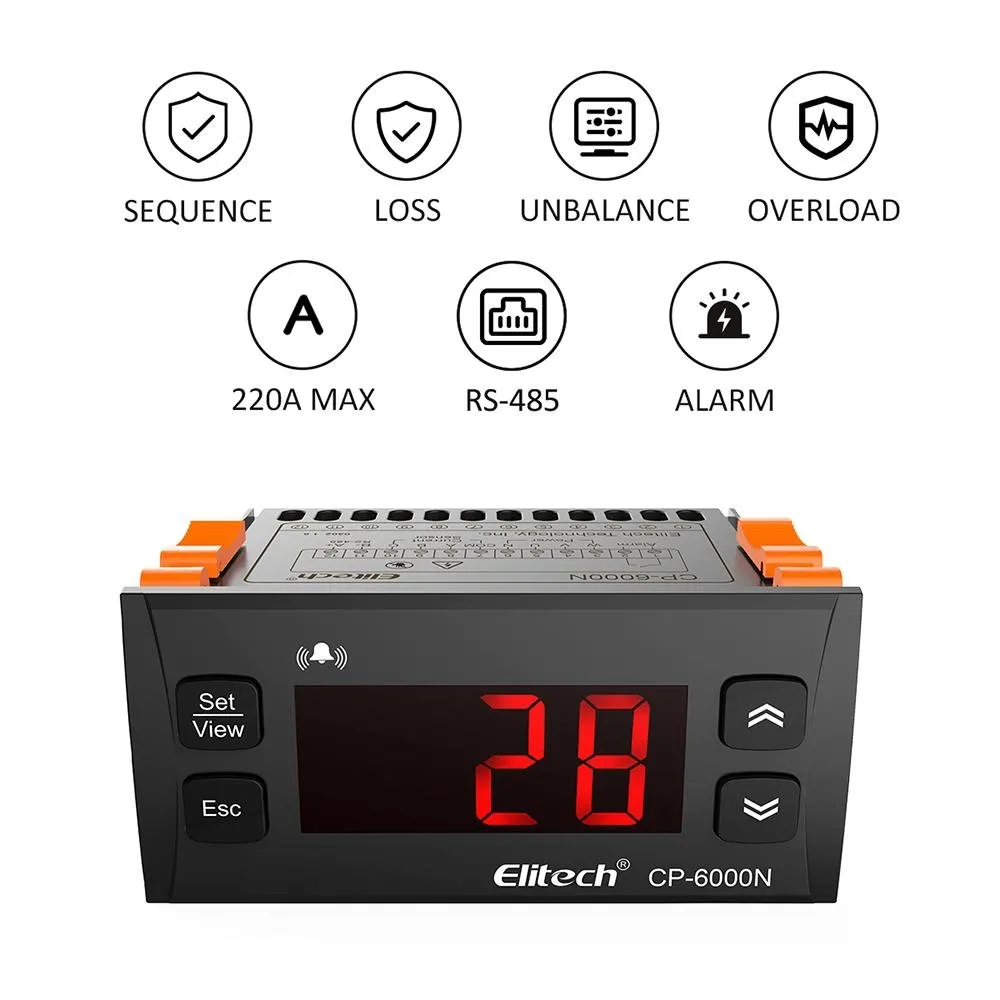

| SEQUENCE | Phase sequence protection is an important safety issue for motors. Reversing the phase sequence causes the motor to reverse its direction of rotation. |
| LOSS | Under phase loss conditions motors, pumps, blowers, and other equipment draw excessive current on the remaining two phases which quickly overheats the motor windings. |
| UNBALANCE | Phase unbalance of a three-phase system exists when one or more of the line-to-line voltages in a three-phase system is mismatched. |
| OVERLOAD | When the motor draws excess current, it is referred to as an overload. This may cause overheating of the motor and damage the windings of the motor. |
| 220A MAX | MAX. 200A current, suitable for almost all situations. |
| RS-485 | The RS-485 standard allows for long cabling distances in electrically noisy environments and can support multiple devices on the same bus. |
